Product Overview
The XQ-RS8135D represents a paradigm shift in precision motion control for complex industrial networks. Specifically engineered for applications requiring robust multi-node communication, this compact brushless servo utilizes the RS485 differential signaling protocol.
Technical Specifications
| Item No. | XQ-RS8135D (RS485 Brushless Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Performance Brushless DC Motor (BLDC) |
| Interface | RS485 Differential Protocol |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

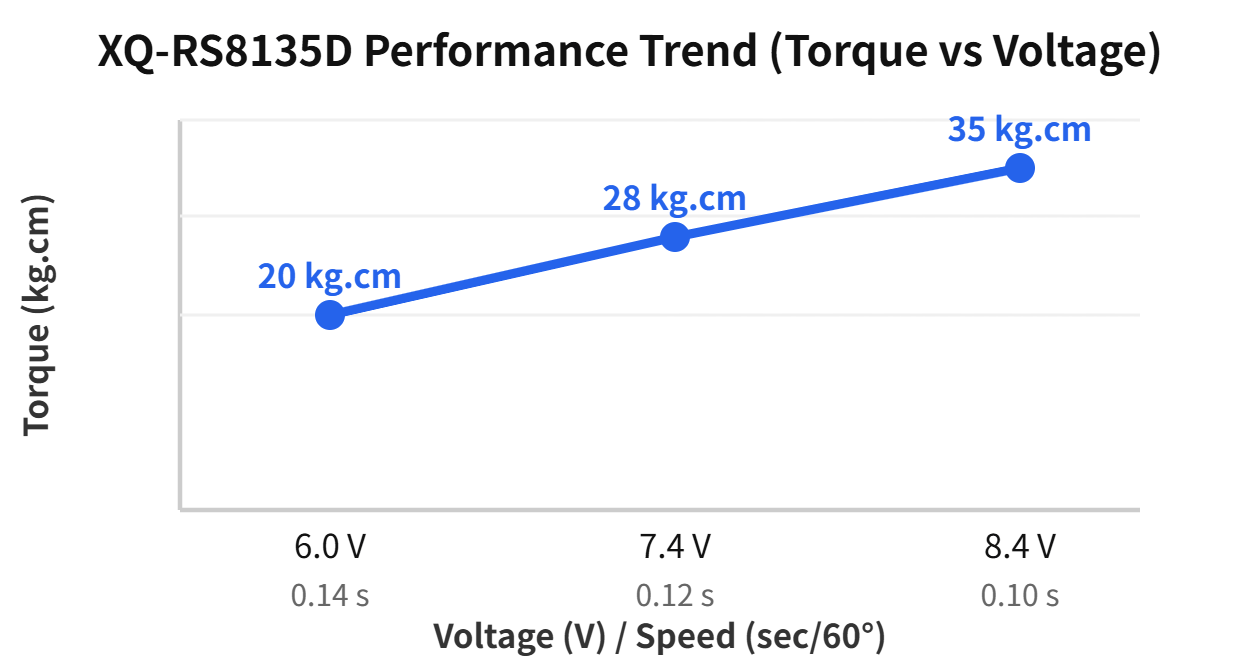

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.14 | 20 |
| 7.4 V | 0.12 | 28 |
| 8.4 V | 0.10 | 35 |
Key Technical Highlights
1. Industrial RS485 Protocol & Multi-Node Scalability
Bidirectional telemetry for critical parameters (load, temp, position); supports up to 255 addressable units.
2. Heavy-Duty Brushless Drive & Fast Response
Longer lifespan and high reliability; 35kg torque with 0.10s response.
3. Full CNC Aluminium Case & IP68 Protection
Aerospace-grade heat dissipation and total immunity to water/dust.
Frequently Asked Questions
A: RS485 differential signaling is highly resistant to EMI, making it reliable for long-distance factory automation.
A: Yes — bidirectional bus communication enables telemetry for predictive maintenance.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
