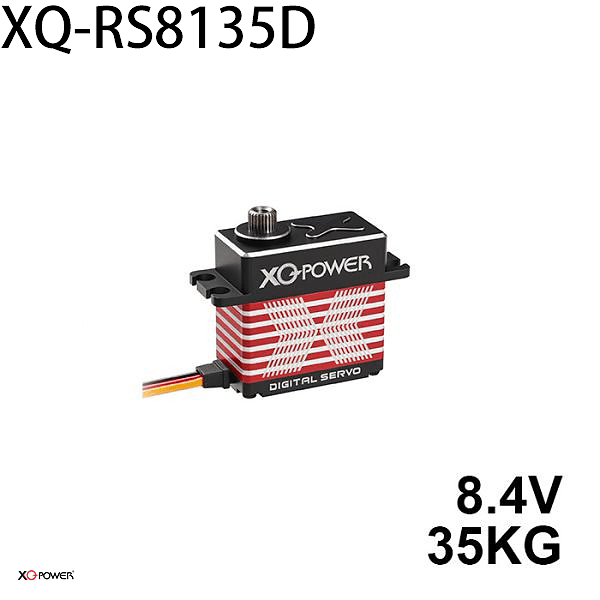

RS8135D RS485 Brushless Servo 35kg High Torque 0.10s

Heavy-Duty RS485 Control for Industrial Automation

The XQ-POWER RS8135D is a precision solution for high-torque industrial motion control. Specifically, it is engineered for applications requiring the robust RS485 differential signaling protocol. This interface provides exceptional noise immunity and allows for reliable long-distance data transmission in complex factory environments.

Brushless Efficiency & High-Voltage Power

Significantly, the RS8135D utilizes a high-performance Brushless Motor. In fact, brushless technology provides higher efficiency and a significantly longer lifespan compared to traditional motors. Consequently, it maintains an ultra-fast response time of 0.10s/60° and a massive torque of 35kg.cm under 8.4V systems, ensuring peak performance without thermal degradation.

All-Aluminium CNC Rigidity

Undoubtedly, handling 35kg of torque requires exceptional structural integrity. The RS8135D is housed in a precision-machined full CNC aluminum case which acts as a high-efficiency radiator. Simultaneously, it protects the internal stainless steel gear set from physical stress, ensuring perfectly concentric rotation for long-term accuracy.

FAQ

• Q: How many RS8135D servos can I control on one bus?
  • A: You can address and control up to 255 units on a single RS485 bus network using unique IDs.
• Q: What is the benefit of RS485 for industrial use?
  • A: RS485 uses differential signaling, which is highly resistant to electromagnetic interference from other factory machinery.
