Product Overview
The XQ-BLS8135TTL represents a new generation of intelligence in high-performance motion control. Specifically engineered for sophisticated robotics and complex multi-axis automation, this smart serial bus brushless servo combines a massive 35kg.cm torque with the intelligent daisy-chain capability of the TTL protocol.
Technical Specifications
| Item No. | XQ-BLS8135TTL (Smart Serial Bus Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Efficiency Brushless DC Motor (BLDC) |
| Interface | TTL Serial Bus (Daisy-chain) |
| Sensor | 12-bit Contactless Magnetic Encoder |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

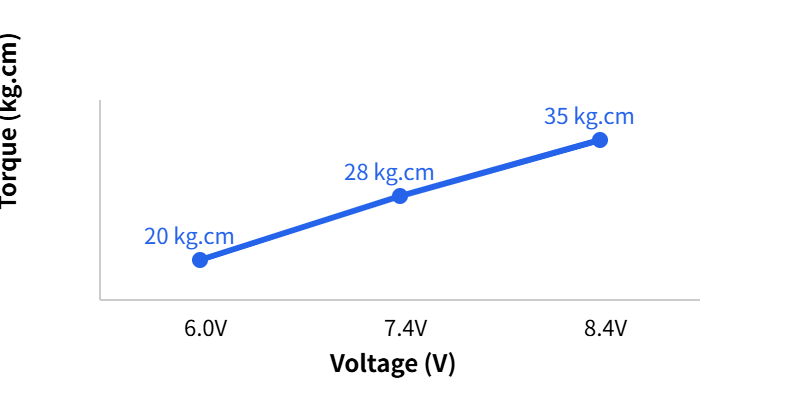

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.14 | 20 |
| 7.4 V | 0.12 | 28 |
| 8.4 V | 0.10 | 35 |
Key Technical Highlights
1. Intelligent Daisy-Chain Network (TTL)
Connect up to 253 nodes via a single line; drastically simplifies wiring harnesses in complex robots.
2. Real-Time Data Feedback & Telemetry
Bidirectional telemetry for real-time monitoring of absolute position, temp, voltage, and workload.
3. Brushless Endurance & Mechanical Rigidity
BLDC motor + 12-bit magnetic encoder for zero-drift centering and nearly infinite operational life.
Frequently Asked Questions
A: Yes, switchable between angle control and motor mode via TTL commands.
A: Eliminates friction/wear, zero-drift precision even in high-vibration environments.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
