Product Overview
The XQ-BLS8135DC represents the pinnacle of communication reliability in high-torque motion control. Specifically engineered for professional UAV flight surfaces and automotive-grade robotics, this CAN Bus brushless servo utilizes the robust CAN protocol.
Technical Specifications
| Item No. | XQ-BLS8135DC (CAN Bus Brushless Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Efficiency Brushless DC Motor (BLDC) |
| Interface | CAN Bus (UAVCAN / DroneCAN) |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

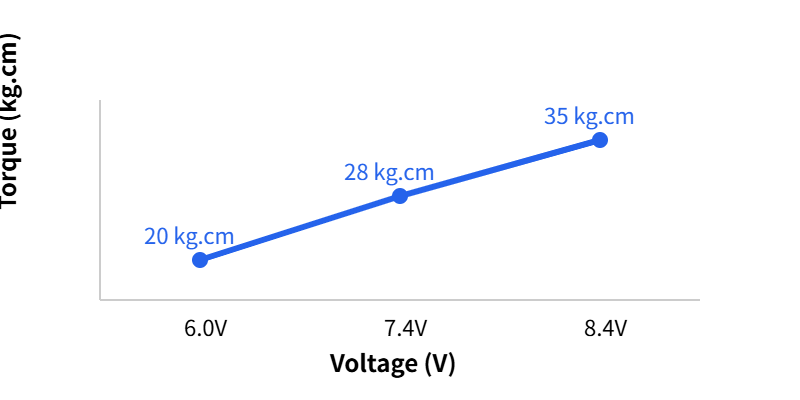

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.14 | 20 |
| 7.4 V | 0.12 | 28 |
| 8.4 V | 0.10 | 35 |
Key Technical Highlights
1. Mission-Critical CAN Bus Reliability
Error detection and signal correction; fully compatible with UAVCAN/DroneCAN (Pixhawk/Cube).
2. High-Torque Brushless Performance
Consistent 35kg.cm torque and 0.10s response time; industrial-grade BLDC durability.
3. Aerospace-Grade Construction & IP68 Protection
Full CNC aluminum case for heat dissipation; IP68 rating for marine and all-weather ops.
Frequently Asked Questions
A: Hardware-level error checking, bi-directional feedback, and EMI resistance.
A: Yes, plug-and-play for ArduPilot/PX4 flight controllers.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
