Product Overview
The XQ-BLS8135D is a professional-grade, high-torque brushless digital servo designed to strike the perfect balance between raw power and rapid response. Delivering a robust 35kg.cm torque and a blistering 0.10s speed at 8.4V.
Technical Specifications
| Item No. | XQ-BLS8135D (Professional Brushless Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Efficiency Brushless DC Motor (BLDC) |
| Voltage | 6.0 V ~ 8.4 V |
| Case Material | Full CNC All Aluminium Case |

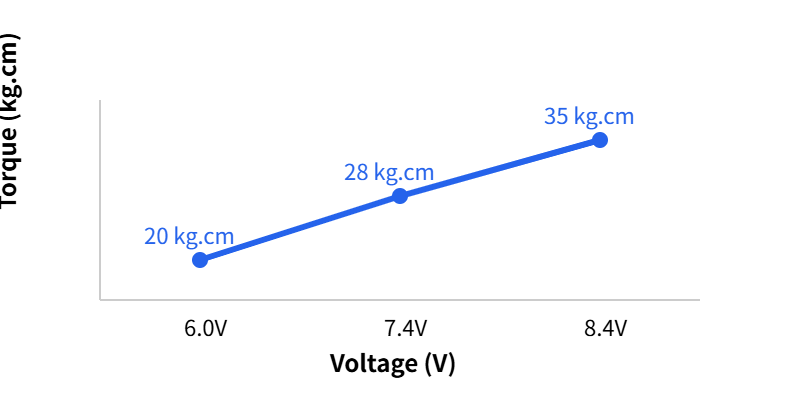

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.14 | 20 |
| 7.4 V | 0.12 | 28 |
| 8.4 V | 0.10 | 35 |
Key Technical Highlights
1. Industrial Brushless Drive
Longer lifespan and high reliability; peak efficiency during intense workloads.
2. Full CNC Aluminium Thermal Control
Aerospace-grade housing acts as a heat radiator; prevents torque fade.
3. Toughened Steel Metallurgy
Stainless steel gear train for zero-slop precision and extreme impact resistance.
Frequently Asked Questions
A: Yes, native high-voltage (HV) servo optimized for 8.4V.
A: Absolute structural rigidity and maximum cooling efficiency at 35kg torque.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
