Servo thermal drift is the engineering question behind every tiltrotor nacelle design: when an actuator
has to hold a large torque for a long time, will it quietly lose position as it heats up? An XQ-Power
servo does not drift simply because it gets warm. Whether measurable drift appears at all depends on
three things — the specific model, the real sustained load it carries, and how effectively that
unit can shed heat. This guide explains the mechanism behind servo thermal drift, why a tiltrotor
mechanism is a worst-case thermal load, and how to select and validate a servo so its thermal behaviour
stays inside your system’s tolerance.

Quick answer

• Heat alone does not make an XQ-Power servo drift. A closed-loop digital servo continuously
  corrects its output against position feedback, which compensates most thermally induced movement.
• Risk rises when a servo is sized on peak or stall torque rather than on the
  continuous torque the tiltrotor actually holds, or when the unit is thermally trapped.
• A tiltrotor mechanism is a demanding case: near-static high torque, a long duty cycle, and
  restricted airflow around the nacelle.
• The practical answer is to size for continuous torque with headroom, run inside the rated voltage
  range, improve the heat path, and confirm the result with a real-workload thermal test.

Does Heat Make an XQ-Power Servo Drift? (Direct Answer)

Not automatically. Temperature change does affect a servo, but an XQ-Power closed-loop servo is
designed to sense its own output position and correct for it. The honest engineering statement is this:
heat does not create drift by itself, but sustained high load changes the thermal conditions inside the
actuator, and whether that turns into visible position error depends on the model, the real load, and
the cooling the servo receives.

In a tiltrotor mechanism — where the actuator may hold a large torque with almost no output
rotation for minutes at a time — the servo draws continuous current without the movement that
normally helps distribute heat. That is the condition worth designing for, and it is a selection and
validation problem rather than a simple yes-or-no answer.

What Is Servo Thermal Drift, and Where Does It Come From?

Servo thermal drift is the change in a servo’s actual output position, caused by a temperature change
rather than by a change in the commanded signal. It is usually small, usually reversible, and usually
grows with the temperature difference between a cold start and a fully warmed-up unit.

1. Where the heat comes from

Four sources dominate inside a working servo:

• Motor copper losses. Winding loss rises with the square of current, so the current
  needed to hold a high torque is the single biggest contributor to internal heating.
• Driver switching losses. The H-bridge and control electronics dissipate heat
  continuously while the servo is powered and holding.
• Mechanical friction. Bearings, gear mesh, and seal drag convert a small share of
  the output work into heat.
• Ambient and neighbouring sources. In a nacelle, the servo may also absorb heat
  radiated or conducted from adjacent power electronics and the surrounding structure.

The important point for a tiltrotor is that a digital servo holding a static high load is a
continuous-current device. It keeps driving to hold position, so it keeps generating heat,
even though nothing appears to be moving.

2. How heat turns into position error

Once heat is inside the actuator, it can influence position through several separate paths:

• Feedback sensing. A magnetic encoder reads a magnetic field rather than a
  resistive track, so it does not suffer the zero-drift and dead-band jitter associated with
  traditional potentiometers.
• Mechanical expansion. The case, gear train, and output shaft expand at different
  rates. That difference can slightly change gear mesh and backlash, which shifts where the output
  actually sits.
• Electronics offset. Driver offset and internal timing can shift marginally with
  temperature.
• Closed-loop correction. This is the part that works in your favour. Because the
  controller compares commanded position with measured position, it actively re-drives the motor to
  close the gap — which is why a closed-loop servo is far more stable than an open-loop design.

3. Three different problems people call “drift”

Before designing against drift, it helps to separate three effects that behave very differently:

Effect	Cause	Reversible?	What to do
True thermal drift	Temperature change acting on sensor, mechanics, and electronics	Yes — it returns as the servo cools	Size with headroom and keep the servo inside its rated thermal envelope
Position error under load	Load exceeds the torque the servo can hold within its control accuracy	Yes — it disappears when the load falls	Select on continuous torque, not peak torque
Wear-induced drift	Gear backlash or bearing wear accumulated over many cycles	No — permanent	Correct duty-cycle selection and periodic inspection

Separating these three is how you avoid chasing a mechanical wear problem with an electrical fix —
or the reverse.

Why a Tiltrotor Mechanism Is a Worst-Case Thermal Load

Not every application stresses a servo the same way. A control-surface servo on a fixed-wing aircraft
moves in short bursts, which gives it recovery time between loads. A tiltrotor transition actuator is
different: it must resist a large, sustained aerodynamic and inertial torque while holding an
essentially static position, sometimes for extended periods.

Condition	Typical RC control-surface servo	Tiltrotor hold-torque actuator
Output motion	Frequent, short movements	Minimal motion, long hold periods
Current profile	Short bursts of high current	Sustained elevated current
Duty cycle	Intermittent	Continuous during the hold phase
Cooling	Airflow across a moving surface	Restricted around a nacelle or boom
Thermal risk	Moderate	Highest of the common applications

That combination — continuous current, minimal motion, and limited airflow — is precisely the
situation in which an undersized servo will heat up fastest. The design response is not to assume that
an XQ-Power servo will drift, but to select a unit whose continuous thermal capability
covers the tiltrotor’s sustained load. See how these actuators are specified for
UAV
flight control surfaces and for
mechanical
structures on UAV and autonomous platforms.

What Determines Whether an XQ-Power Servo Drifts Under Sustained Load

Nine factors decide the outcome. Reviewing them in order is the fastest way to predict whether a given
tiltrotor design will see servo thermal drift at all.

Factor	Why it matters	What to check
Model and torque headroom	Continuous torque is a different limit from peak torque	Confirm the held load sits well below the continuous torque rating
Supply voltage	For the same output power, a higher voltage needs less current — and copper loss scales with current squared	Use the model’s rated voltage window and keep the supply stiff
Motor type	Brushless and coreless motors generally run with lower loss than conventional brushed designs	Prefer the brushless servo range for sustained hold duty
Case material and mass	A metal case acts as a heat sink; more thermal mass slows the temperature rise	Favour CNC aluminium housings over plastic where the load is sustained
Gear train material	Steel and titanium gears hold mesh geometry better than softer materials under thermal load	Match gear material to the load and life requirement
Feedback type	Magnetic encoders do not exhibit the zero-drift of resistive potentiometers	Prefer closed-loop magnetic-encoder models
Mounting and heat path	Heat leaves through the mounting interface; a thermally insulating bracket traps it	Provide a conductive mounting path and avoid enclosing the servo
Ambient temperature and airflow	The chamber the servo sits in sets how much heat it can reject	Account for nacelle temperature, not just outside air
Duty cycle	How long the load is held, and how often, sets total heat accumulation	Define hold duration and recovery time explicitly

How XQ-Power Servos Are Built for Thermal Stability

Thermal behaviour is a design outcome, not an accident. Several characteristics of the XQ-Power range
work directly in favour of a tiltrotor holding sustained torque:

• Machined aluminium housings. The CNC aluminium case is a functional heat path, not
  just protection, and it helps move heat out of the motor and driver area.
• Lower-loss motor architectures. Brushless and coreless motors reduce the heat
  generated for a given output, which matters most exactly when the load is held rather than cycled.
  Browse the high-torque servo
  range and the coreless
  servo motor range.
• Closed-loop control with magnetic encoders. Position is measured rather than
  inferred, so the controller corrects thermally induced movement instead of letting it accumulate.
  Compare this with the behaviour described in the
  repeatability and
  positioning guide.
• Higher-voltage industrial designs. Industrial and heavy-duty models that operate at
  higher bus voltages take less current for the same output power, which reduces copper loss and heat.
  The relationship between voltage, speed, and response is covered in the
  voltage
  and response article.
• Protection features. Selected models include stall, overcurrent, and overtemperature
  monitoring, so an abnormal condition is caught rather than allowed to develop into permanent damage.
  See the overload,
  overcurrent, and overheat protection guide.
• Long-duration test evidence. The published
  2,000-hour
  industrial life test report documents sustained-operation reliability rather than a single
  functional pass.

How to Prevent Thermal Drift in a Tiltrotor Application

The following sequence addresses thermal drift at the design stage, before it can reach a flight test:

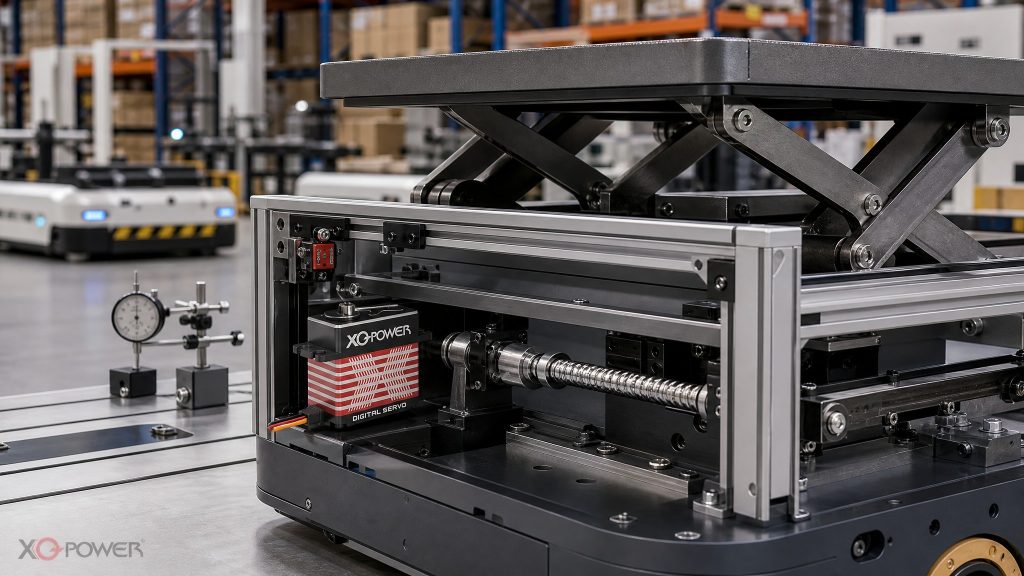

1. Calculate the sustained load first. Determine the torque the tiltrotor holds during
   the transition and the hold phase, then separate continuous torque from any transient peak. The
   method is set out in
   how
   to size a high-torque servo for AGVs and robotic joints.
2. Size on continuous torque with headroom. Leave margin between the held load and the
   model’s continuous rating, so the servo is not working at its thermal limit simply to hold position.
3. Run inside the rated voltage window. Use the higher end of the rated range only if
   the supply is stable; an adequate bus voltage keeps current — and therefore heat — lower.
4. Design a heat path. Mount the servo to a conductive structure, keep the case
   exposed to air, and avoid insulating enclosures around the actuator.
5. Define the duty cycle in writing. Hold duration, recovery time, and the number of
   transitions per mission all belong in the specification, because they set the steady-state temperature.
6. Validate with a real-workload test. Do not rely on a datasheet alone; reproduce the
   actual load and duty cycle on the bench and measure the outcome.

Engineering note: a servo that is undersized for a sustained load will not fail politely.
It will first run hot, then show growing position error, and only later reach a protection threshold or a
mechanical limit. Treat rising case temperature as the earliest warning signal, not the last one.

How to Validate Thermal Drift Before Production

A focused bench test answers the tiltrotor question directly. The method below follows the same
conditioning logic used in the IEC environmental test series, where cold and dry-heat procedures
(IEC 60068-2-1 and
IEC 60068-2-2) define how a powered specimen is
stabilised at a temperature before measurements are taken.

1. Instrument the unit. Log case temperature, supply current, and commanded versus
   actual output position simultaneously.
2. Apply the real sustained load. Reproduce the actual hold torque with the servo
   mounted the way it will be mounted in the nacelle.
3. Run the real duty cycle. Hold for the true duration, then repeat the number of
   transitions a mission requires.
4. Compare cold and hot states. Record position error at the start and at thermal
   steady state. The difference is your servo thermal drift figure for that configuration.
5. Repeat at ambient extremes. Re-run at the lowest and highest ambient the nacelle
   will see, because drift is governed by the total temperature rise, not by room temperature alone.
6. Set an acceptance limit. Compare the measured drift against the position tolerance
   the tiltrotor control loop can absorb, and select or re-size on that basis.

If the measured drift exceeds what the mechanism can tolerate, the fix is normally a larger continuous
torque margin or a better heat path — both of which are cheaper to change on a bench than on an
aircraft. XQ-Power’s engineering team can review a specific tiltrotor duty cycle against standard models
or an OEM/ODM configuration; the wider engineering approach is summarised in the
engineering capabilities hub and the
servo motor technical guide.

Frequently Asked Questions

Will an XQ-Power servo drift because of heat in a tiltrotor mechanism?

Not automatically. A closed-loop XQ-Power servo corrects its output against position feedback, which
compensates most thermally induced movement. Servo thermal drift becomes a real risk when the servo is
undersized for the sustained load, or when it cannot reject heat effectively in a nacelle.

What is servo thermal drift?

Servo thermal drift is a change in the servo’s actual output position caused by temperature rather than
by the command signal. It is generally small, generally reversible, and it grows with the temperature
difference between a cold start and a fully warmed-up unit.

Which XQ-Power servo suits a tiltrotor holding high torque for long periods?

There is no single answer, because the right model depends on the held torque, voltage, duty cycle,
mounting, and ambient conditions. In practice, designs with sustained hold duty usually start from the
high-torque range or the
brushless range, then
confirm the choice with a real-workload thermal test.

Does a higher supply voltage reduce servo heating?

For the same output power, a higher voltage requires less current, and copper loss rises with the square
of current. That is why running a servo within its higher-voltage window, on a stable supply, can reduce
internal heating — provided the model is rated for that voltage.

How do I test a servo for thermal drift before production?

Mount the servo as it will be installed, apply the real sustained load, run the real duty cycle, and log
case temperature, current, and commanded versus actual position. Compare the cold state with the
thermal steady state, then repeat at the ambient extremes the application will experience.

Is thermal drift permanent, or does it correct itself?

True thermal drift is reversible and returns as the servo cools. It should not be confused with
wear-induced drift from gear backlash or bearing wear, which is permanent and is addressed through
duty-cycle selection and periodic inspection rather than by temperature control.

Does overheat protection prevent thermal drift?

Protection limits damage; it does not create extra thermal capacity. Stall, overcurrent, and
overtemperature monitoring catch an abnormal condition before it becomes permanent damage, but the
correct response is to select a servo whose continuous rating matches the sustained load in the first
place.

Conclusion

A tiltrotor that holds a large torque for a long time is one of the hardest thermal duties a servo will
ever see — but heat does not have to become drift. An XQ-Power closed-loop servo corrects its own
output, magnetic encoders avoid the zero-drift of resistive sensing, aluminium housings move heat out of
the actuator, and long-duration life testing documents sustained operation rather than a single
functional check. The remaining work is selection: size on continuous torque with headroom, keep the
servo inside its rated voltage and thermal envelope, give it a real heat path, and confirm the result
with a bench test that reproduces the actual duty cycle.

Planning a tiltrotor or VTOL actuator?

Share your held torque, supply voltage, hold duration, duty cycle, mounting arrangement, and ambient
conditions with the XQ-Power engineering team. We will review the standard range against a
sample-validation plan, or scope an OEM/ODM configuration for your application.

Contact the XQ-Power engineering team →

Sources and Further Reading

1. IEC 60068-2-1 — Environmental testing, Part 2-1: Tests, Test A: Cold.
   https://webstore.iec.ch/en/publication/502
2. IEC 60068-2-2 — Environmental testing, Part 2-2: Tests, Test B: Dry heat.
   https://webstore.iec.ch/en/publication/510
3. XQ-Power — 2,000-Hour Industrial Life Test Report.
   https://www.xqservo.com/2000-hour-life-test-industrial-servo-reliability/
4. XQ-Power — Overload, Overcurrent, and Overheat Protection Guide.
   https://www.xqservo.com/servo-overload-overcurrent-overheat-protection-guide/
5. XQ-Power — Servo Motor Technical Guide.
   https://www.xqservo.com/technical-guide/
