Product Overview
The XQ-S8060TTL represents the absolute limit of torque density in a standard 20 x 40 x 41 mm form factor. Specifically engineered for heavy-duty industrial applications and large-scale UAV systems, this smart serial bus servo provides an extraordinary peak torque of 62kg.cm (861 oz-in) at 8.4V.
Technical Specifications
| Item No. | XQ-S8060TTL (Smart Serial Bus Servo) |
|---|---|
| Size | 20 * 40 * 41 mm |
| Weight | 81g ± 0.2g (2.86oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | Coreless Motor |
| Interface | TTL Serial Bus |
| Sensor | 12-bit Magnetic Encoder |
| Voltage | 6.0 V ~ 8.4 V |

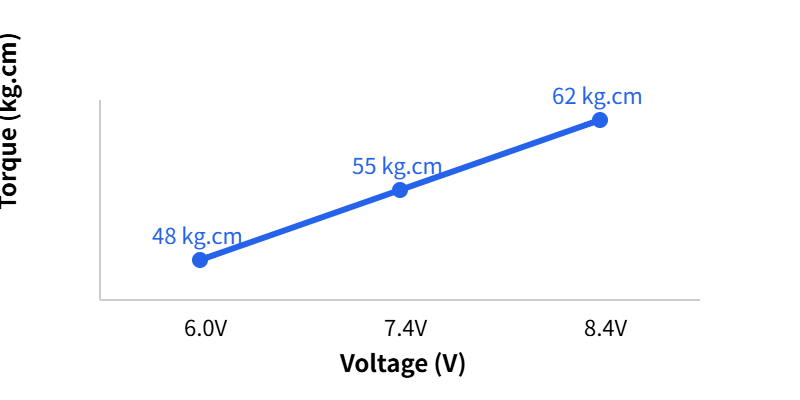

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.180 | 48 |
| 7.4 V | 0.158 | 55 |
| 8.4 V | 0.136 | 62 |
Key Technical Highlights
1. Intelligent Multi-Node Network (TTL)
Daisy-chain up to 253 nodes; bidirectional real-time telemetry (temp, load, position).
2. Unrivaled 62kg Torque & Magnetic Precision
62kg.cm peak torque; 12-bit magnetic encoder for zero-drift precision.
3. Aerospace-Grade Thermal Management
Aerospace aluminum case for heat dissipation; splash-resistant design.
Frequently Asked Questions
Yes, via TTL protocol (temp, voltage, load).
Supports continuous rotation mode for robotic winches.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
