Product Overview
The XQ-RS8145D represents a pinnacle of industrial-grade motion control. Specifically, it is engineered for mission-critical automation and heavy-duty robotics that demand the robust RS485 differential signaling protocol.
Technical Specifications
| Item No. | XQ-RS8145D (Smart RS485 Serial Bus Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Gear Set |
| Motor Type | High-Efficiency Brushless DC Motor (BLDC) |
| Interface | RS485 Differential Bus (High Noise Immunity) |
| Voltage | 6.0 V ~ 8.4 V |
| Housing | Full CNC-Machined Aerospace Aluminum Case |

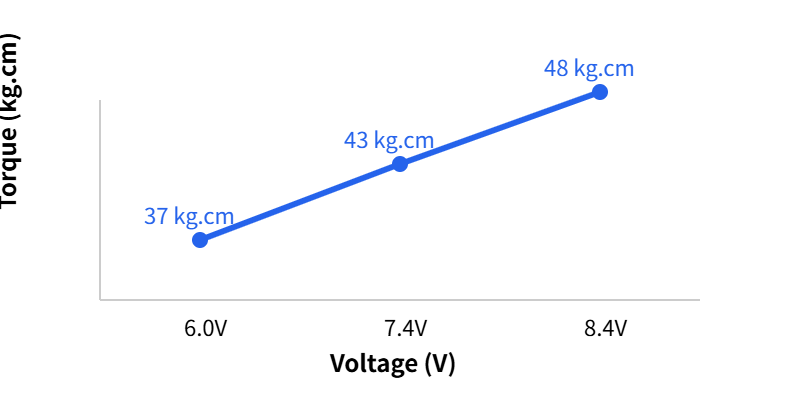

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.144 | 37 |
| 7.4 V | 0.122 | 43 |
| 8.4 V | 0.106 | 48 |
Key Technical Highlights
1. Industrial RS485 Bus Reliability
Utilizes RS485 differential signaling for superior EMI resistance, ideal for long-distance serial communication in industrial sites.
2. Brushless Power & Instantaneous Response
Ultra-fast 0.106s transit speed under 48kg load ensures high-frequency duty cycles without thermal degradation.
3. Maximum Heat Dissipation & Mechanical Rigidity
Full CNC aluminum case for rapid heat dissipation and stainless steel geartrain for zero-backlash durability.
Frequently Asked Questions
A: Yes, supports multi-node addressing (up to 253 nodes) via a single differential signal wire.
A: RS485 is much more resistant to data corruption in long-distance or high-voltage industrial environments.
