Product Overview
The XQ-RS8125D represents a paradigm shift in precision motion control for industrial robotics. Specifically engineered for advanced multi-node serial communication, this compact brushless servo utilizes the robust RS485 differential protocol.
Technical Specifications
| Item No. | XQ-RS8125D (RS485 Brushless Servo) |
|---|---|
| Size | 20 * 40 * 34 mm |
| Weight | 73g ± 0.2g (2.57oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Performance Brushless DC Motor (BLDC) |
| Interface | RS485 Differential Protocol |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

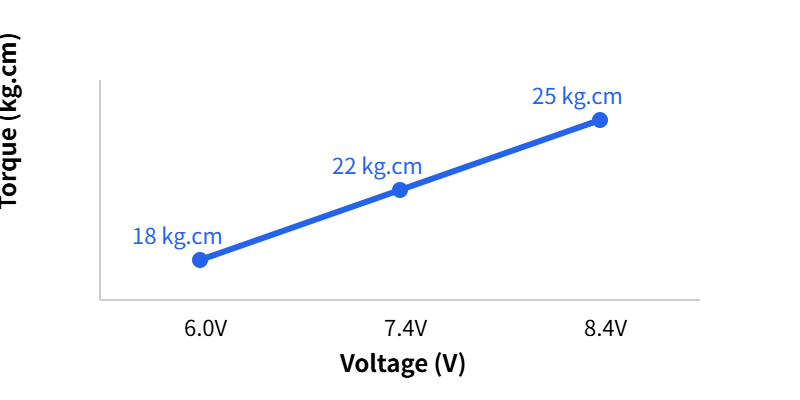

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.12 | 18 |
| 7.4 V | 0.09 | 22 |
| 8.4 V | 0.07 | 25 |
Key Technical Highlights
1. Industrial RS485 Protocol & Multi-Node Control
Supports long-distance signal transmission and daisy-chaining; bidirectional telemetry for position/load monitoring.
2. Brushless Power & Lightning Response
Ultra-fast 0.07s response time and longer operational life via BLDC motor.
3. IP68 Protection & CNC Metallurgy
CNC aluminum case for heat dissipation; shielded from water immersion and dust.
Frequently Asked Questions
A: Differential signaling resistant to EMI, reduced wiring complexity.
A: Yes, IP68 waterproof sealing for all-weather outdoor tasks.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
