Product Overview
The XQ-RS8175D is the flagship high-performance actuator designed for mission-critical industrial automation, heavy-duty robotic joints, and professional-grade UAV systems. Delivering a massive 75kg.cm torque and a lightning-fast 0.08s speed at 8.4V, it sets a new industry standard.
Technical Specifications
| Item | Specification |
|---|---|
| Item No. | XQ-RS8175D (Industrial RS485 Brushless) |
| Size | 20 * 40 * 38 mm |
| Weight | 88g ± 0.2g (3.1oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | High-Efficiency Brushless Motor (BLDC) |
| Interface | RS485 Serial Bus (Differential Signaling) |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

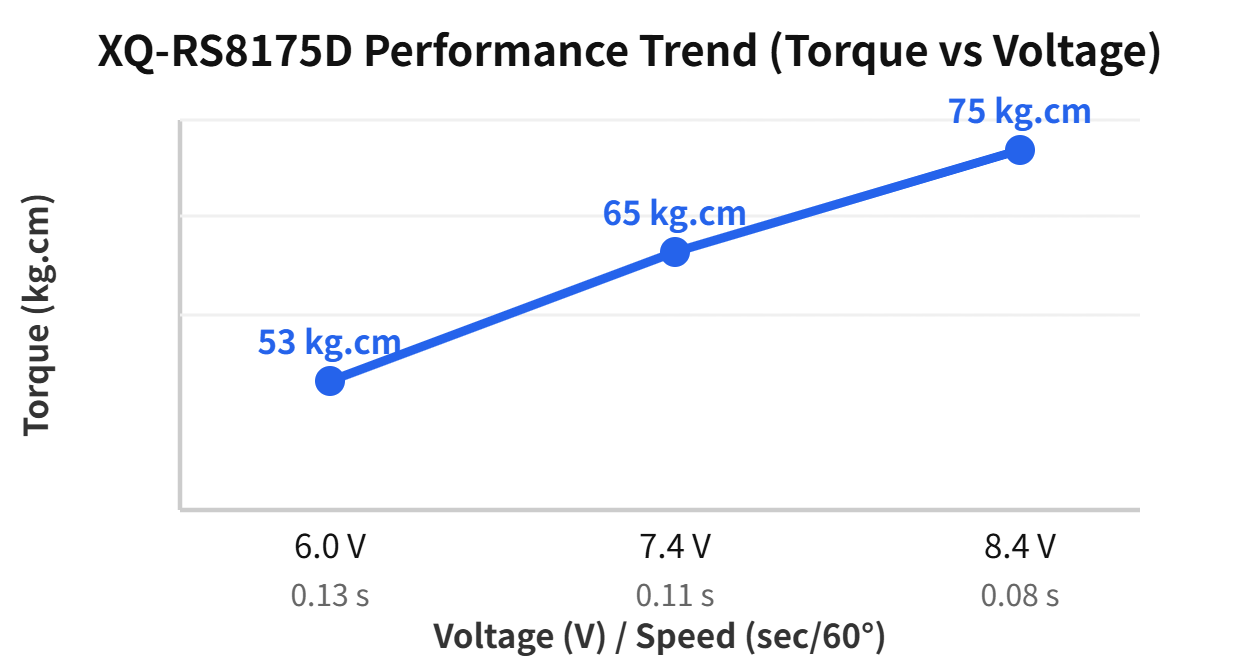

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.13 | 53 |
| 7.4 V | 0.11 | 65 |
| 8.4 V | 0.08 | 75 |
Key Technical Highlights
1. Industrial RS485 Bus Protocol
Extreme immunity to EMI for reliable multi-node control over distances >100m.
2. Unrivaled Torque & Brushless Efficiency
75kg.cm holding force with superior thermal stability and long lifespan.
3. Superior Metallurgy & Heat Dissipation
CNC aerospace aluminum case with toughened stainless steel gears for zero-backlash precision.
Frequently Asked Questions
A: Higher resistance to electrical noise and supports much longer cable lengths without signal degradation.
A: Yes, supports multi-node addressing via unique IDs through a single pair of wires.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
