Product Overview
The XQ-BLS8175DC represents the ultimate fusion of brute force and high-bandwidth digital intelligence. Specifically engineered for mission-critical applications—including heavy-lift UAVs, automotive-grade robotics, and high-reliability industrial automation—this smart CAN Bus brushless servo combines a massive 75kg-cm torque with a lightning-fast 0.08s speed.
Technical Specifications
| Item No. | XQ-BLS8175DC (Smart CAN Bus Brushless Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 88g ± 0.2g (3.1oz) |
| Gear Type | Heavy-Duty Stainless Steel Gears |
| Motor Type | High-Efficiency Brushless Motor (BLDC) |
| Interface | CAN Bus (UAVCAN / Protocol 2.0) |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

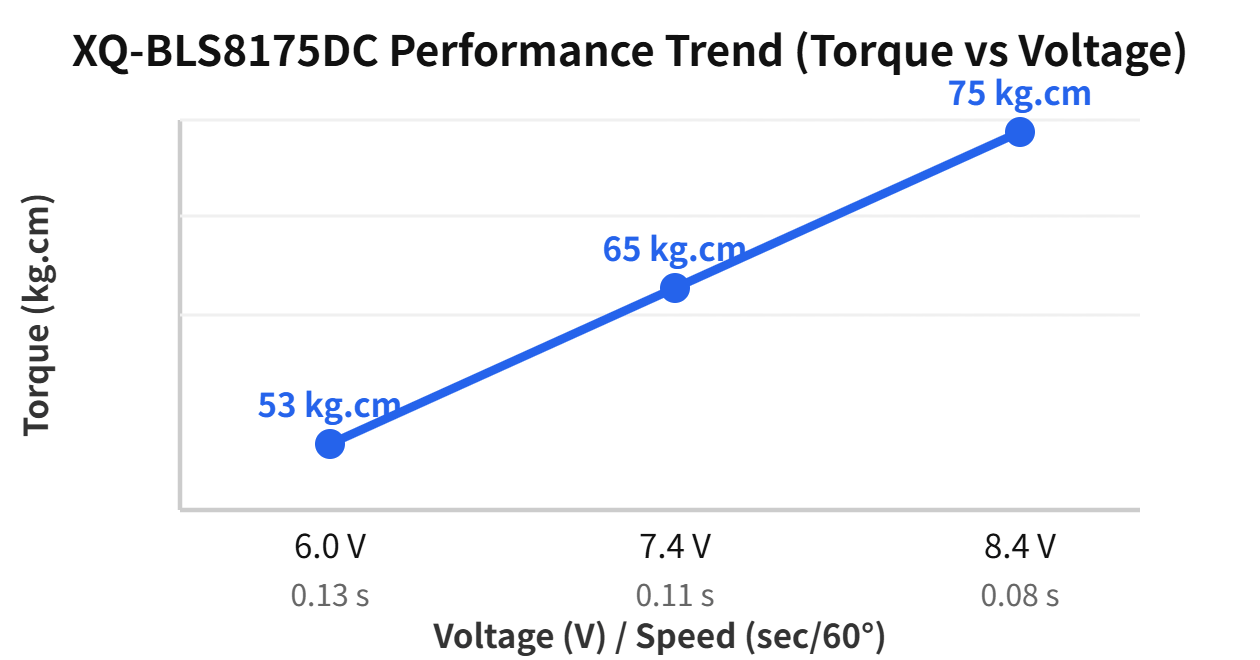

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.13 | 53 |
| 7.4 V | 0.11 | 65 |
| 8.4 V | 0.08 | 75 |
Key Technical Highlights
1. Mission-Critical CAN Bus Reliability
Optimized for high-speed, error-tolerant data exchange with superior noise immunity against EMI.
2. UAVCAN Optimization & Brushless Drive
Supports standard UAVCAN protocols for seamless integration with advanced flight controllers like Pixhawk.
3. Full CNC Aluminium Armor & IP68 Protection
Aerospace-grade CNC housing acts as a heatsink with IP68 sealing for extreme environments.
Frequently Asked Questions
A: Yes, fully compatible with UAVCAN for robust communication over long distances.
A: Absolutely, CAN Bus supports multi-node addressing for complex wiring harnesses.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
