Product Overview
The XQ-BLS8145DC represents the ultimate standard in high-reliability motion control. Specifically, it is engineered with the CAN Bus (UAVCAN) protocol, designed for professional heavy-lift UAVs and automotive-grade robotics where signal integrity is non-negotiable.
Technical Specifications
| Item No. | XQ-BLS8145DC (Smart CAN Bus Serial Servo) |
|---|---|
| Size | 20 * 40 * 38 mm |
| Weight | 77g ± 0.2g (2.7oz) |
| Gear Type | Toughened Stainless Steel Geartrain |
| Motor Type | High-Efficiency Brushless DC Motor (BLDC) |
| Interface | CAN Bus (Compatible with UAVCAN / Pixhawk) |
| Voltage | 6.0 V ~ 8.4 V |
| Protection | IP68 Waterproof |

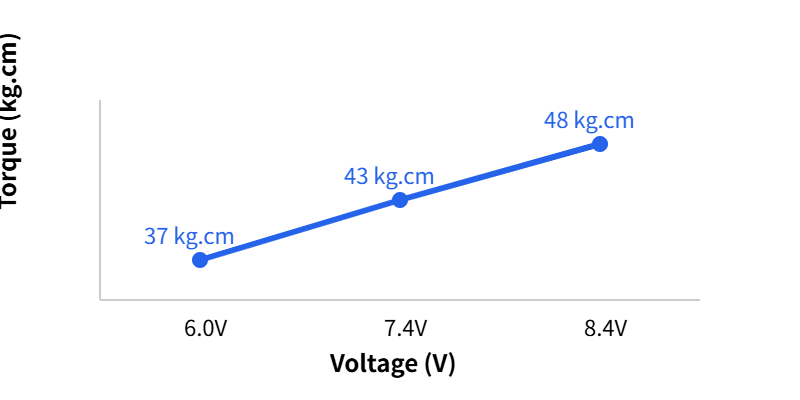

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.144 | 37 |
| 7.4 V | 0.122 | 43 |
| 8.4 V | 0.106 | 48 |
Key Technical Highlights
1. Mission-Critical CAN Bus (UAVCAN) Integration
Utilizes CAN Bus interface for superior error detection and data redundancy, ensuring signal integrity in electromagnetically noisy environments.
2. Brushless Endurance & Rapid Response
High-performance brushless motor enables ultra-fast 0.106s response time under 48kg load, essential for high-frequency adjustments.
3. Aerospace-Grade Rigidity (CNC & IP68)
Full CNC aluminum case and toughened stainless steel gears with IP68-rated sealing for marine robotics and tactical deployment.
Frequently Asked Questions
A: Yes, supports standard UAVCAN protocol for plug-and-play distributed control and real-time status monitoring.
A: Differential signaling and built-in error checking prevent signal spikes from causing failures in flight-critical systems.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8060D provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
