IP67 Waterproofing & Industrial-Grade TTL Bus Control

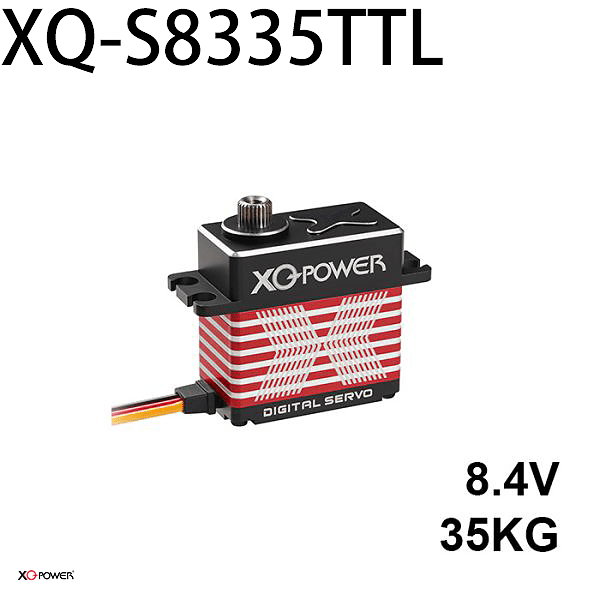

The XQ-POWER S8335TTL represents a specialized fusion of extreme durability and intelligent motion control. Specifically, it is engineered for underwater robotics and outdoor automation where IP67-rated waterproof protection is mandatory. The advanced TTL Serial Bus protocol enables a daisy-chain topology, allowing you to control multiple 35kg actuators via a single signal line, significantly reducing wiring complexity in complex robotic platforms.
Ultra-Fast Brushless Response & High Fidelity
Significantly, the S8335TTL utilizes a high-performance Brushless DC Motor. In fact, it achieves a lightning-fast response of 0.07s/60° and a specialized torque of 35kg.cm under 8.4V platforms. The integrated 12-bit magnetic encoder ensures zero-drift centering accuracy and near-infinite operational life, providing the precision feedback needed for professional-grade robotic joints.
CNC Aluminium Armor & Stainless Steel Metallurgy
Undoubtedly, managing constant high-speed cycles under 35kg of force requires superior integrity. The S8335TTL features a precision-machined full CNC aerospace aluminum case for maximum heat dissipation. The internal stainless steel gear set and dual ball bearing system ensure perfectly concentric rotation. Consequently, this rugged design guarantees reliable performance in harsh, all-weather industrial environments.
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of the Magnetic Encoder in the S8335TTL? Unlike traditional potentiometers, the contactless magnetic encoder in the XQ-POWER S8335TTL ensures zero center drift and near-infinite operational life. This technology provides ultra-precise positioning and extreme reliability, even in high-vibration or heavy-duty automation environments.
Q2: Is the S8335TTL safe for long-term use in marine or saltwater conditions? Yes, the S8335TTL features a certified IP67-rated waterproof structure and a toughened stainless steel gear train. It is specifically engineered to resist corrosion from saltwater, mud, and fine dust, making it the premier choice for subsea ROVs, marine robotics, and agricultural drones.
