Product Overview
The XQ-S8050TTL represents the absolute pinnacle of high-torque motion control in a standard 20mm width chassis. Specifically engineered for professional applications that require a robust and reliable heavy-duty bus servo, this flagship actuator combines a massive 54kg.cm torque (750 oz-in) with the intelligent daisy-chain capability of TTL communication.
Technical Specifications
| Item No. | XQ-S8050TTL (Smart Serial Bus Servo) |
|---|---|
| Size | 20 * 40 * 41 mm |
| Weight | 81g ± 0.2g (2.86oz) |
| Gear Type | Toughened Stainless Steel Gears |
| Motor Type | Coreless Motor |
| Interface | TTL Serial Bus |
| Sensor | 12-bit Magnetic Encoder |
| Voltage | 6.0 V ~ 8.4 V |

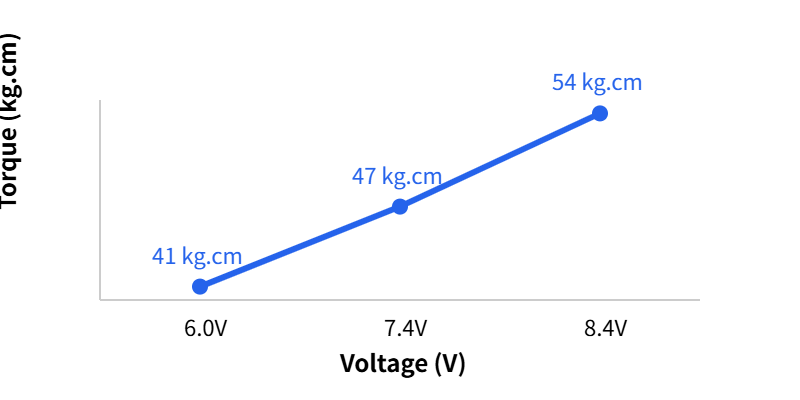

Performance Matrix
| Voltage | Speed (sec/60°) | Torque (kg.cm) |
|---|---|---|
| 6.0 V | 0.158 | 41 |
| 7.4 V | 0.132 | 47 |
| 8.4 V | 0.108 | 54 |
Key Technical Highlights
1. Intelligent Serial Control (TTL & Daisy-Chain)
Daisy-chain up to 253 units; bidirectional real-time telemetry (temp, load, position).
2. Unrivaled Power & Accuracy (54kg & Magnetic Encoder)
54kg.cm peak torque; 12-bit magnetic encoder for zero-drift precision.
3. CNC Thermal Management & Rugged Metallurgy
Aerospace aluminum case for heat dissipation; toughened stainless steel gears.
Frequently Asked Questions
Telemetry and simplified daisy-chain wiring.
Non-contact sensing for zero wear and infinite life.
Take Action
Ready to deploy the absolute pinnacle of torque and precision? The XQ-S8050TTL provides the ultimate heavy-duty motion solution for professional robotic and industrial projects.
