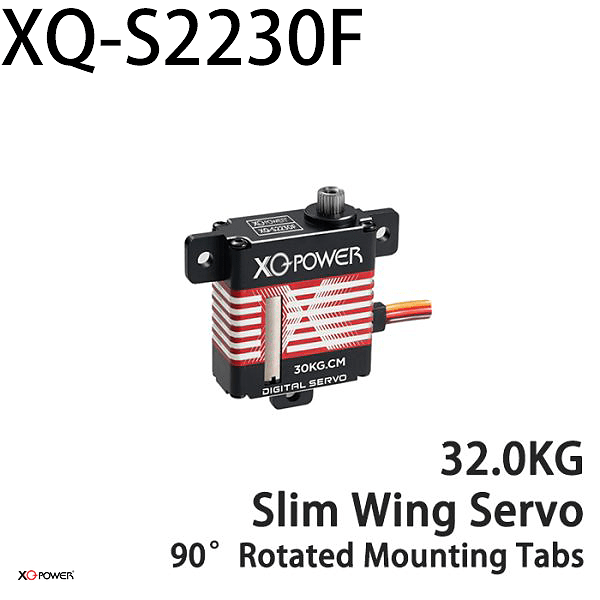

Precision Engineering in a Heavy-Duty Slim Wing Servo

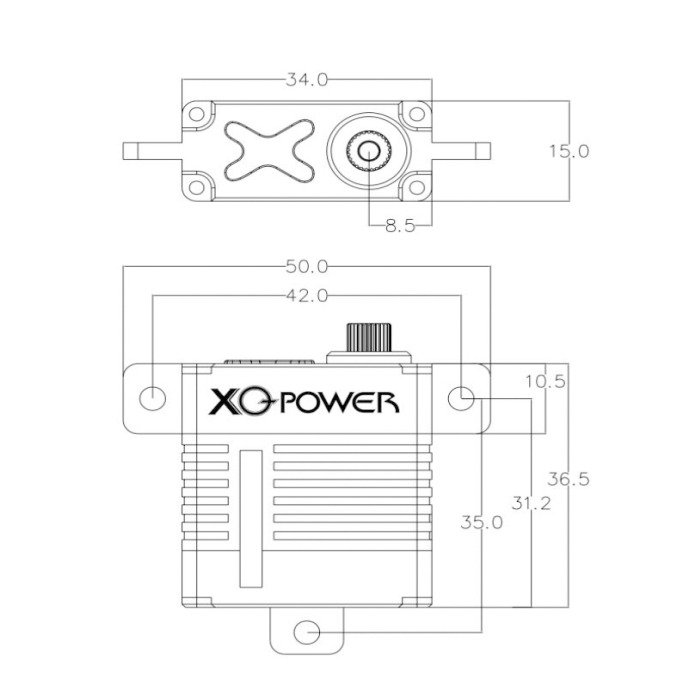

The XQ-POWER S2230F represents an absolute milestone in high-torque glider motion technology. Specifically, it is engineered for professional applications where glider wings require extreme holding power. Moreover, this slim wing servo features an incredibly thin 15mm housing profile. Consequently, it fits seamlessly into heavy sailplane wings and tight robotic joints. Furthermore, it operates efficiently under 8.4V high-voltage platforms. In addition, this thin actuator delivers a specialized torque of 32kg.cm (444.3 oz-in). Therefore, it is the premier choice for aerospace control surfaces and heavy scale sailplanes.
-
Monster Torque Performance & Speed Efficiency
Significantly, the S2230F stands out due to its mind-blowing power density in an ultra-slim chassis. For instance, it achieves an incredible 0.09s/60° response speed under 8.4V operation. In fact, this makes it one of the most powerful and fastest slim wing servos available globally today. As a result, the high-voltage platform allows for instantaneous control feedbacks with near-zero latency. Ultimately, this enhances the dynamic aerodynamic stability of massive scale gliders. Additionally, the coreless technology ensures a maintenance-free service life under high-frequency cycling. Thus, it provides smooth and reliable mechanical positioning.
-
Structural Rigidity and Toughened Metallurgy
Undoubtedly, managing constant high-speed cycles with 32kg of force in a 15mm body requires superior construction. To illustrate, the XQ-POWER S2230F features a precision CNC aerospace aluminum case. Notably, this full metal housing acts as a highly efficient heat radiator during intense operations. Simultaneously, it protects the heavy-duty toughened stainless steel gear train from physical wear. Meanwhile, the dual ball bearing system ensures perfectly concentric rotation with minimal friction. Consequently, the extra-thick 25T-φ5.96mm output shaft transfers torque without physical deflection. Most importantly, this rugged design guarantees reliable performance in critical automation tasks.
-
All-Weather Splashproof Protection for Field Operations
Finally, this slim wing servo offers robust protection for specialized outdoor tasks. In particular, its certified splash-resistant design shields internal electronics from fog, moisture, and condensation. Hence, it provides an incredibly cost-effective option for non-submersible applications. Clearly, the perfect synergy of high-speed performance and splashproof sealing offers a major competitive edge. Similarly, the unit withstands extreme vibrations during high-frequency movements. Furthermore, its wide temperature range allows for deployment in diverse global climates. In conclusion, the S2230F is the ultimate high-precision slim node.
For more technical details on slim and low profile Servos or our Marine Robotics Solutions, please visit our [Technical Blog] or contact our engineers.
-
-
Frequently Asked Questions (FAQ)
Q1: What types of servos and motors does XQ-power provide? XQ-power offers over 50 servo model variants, ranging from 2.5g micro servos to 1000kg high-torque brushless servos, and from UAV power motors to brushless hub motors. Our products span multiple industries, including smart homes, drones, electric vehicles, and precision agriculture.
Q2: Can you recommend specific models for mass production? Absolutely. You can click the WhatsApp button on the right for an instant technical consultation, or use the Contact button at the top to fill in our inquiry form. Our product engineers will analyze your specific requirements and recommend the most suitable drive modules for your mass production needs.
Q3: How can I apply for samples? What is the delivery lead time? For industry-leading customers, we offer free samples for functional verification. For standard products in stock, samples are dispatched within 48 hours after confirmation. For custom products, please contact our sales representative for a specific delivery timeline.
Q4: How soon can I expect a response to my technical inquiry? We are committed to prompt responses. You can expect to hear from us within 24-48 hours of submitting your inquiry. If your request is time-sensitive or urgent, please let us know, and we will prioritize it accordingly.
-
